DIMENSIONS.

Interior.

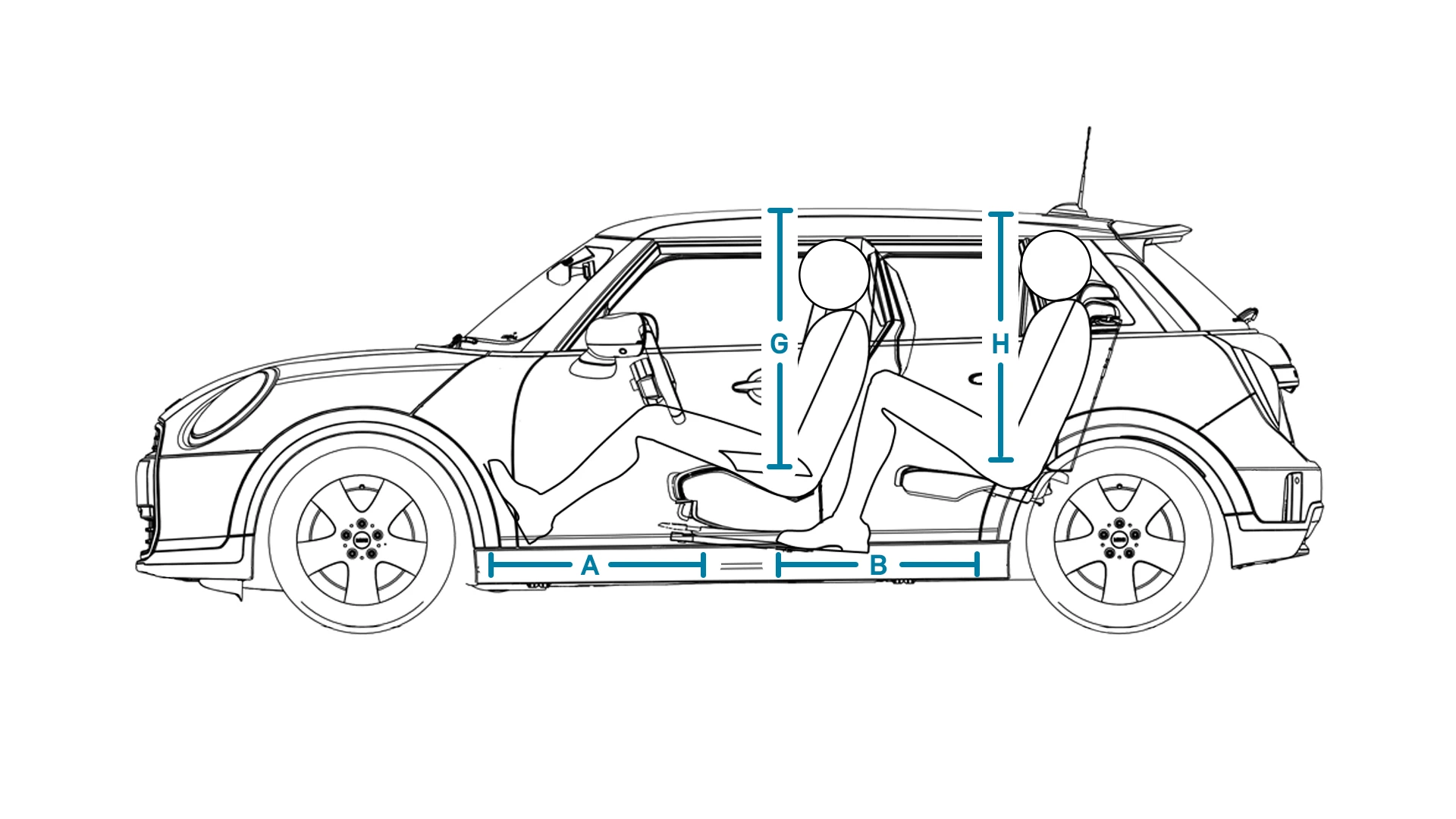

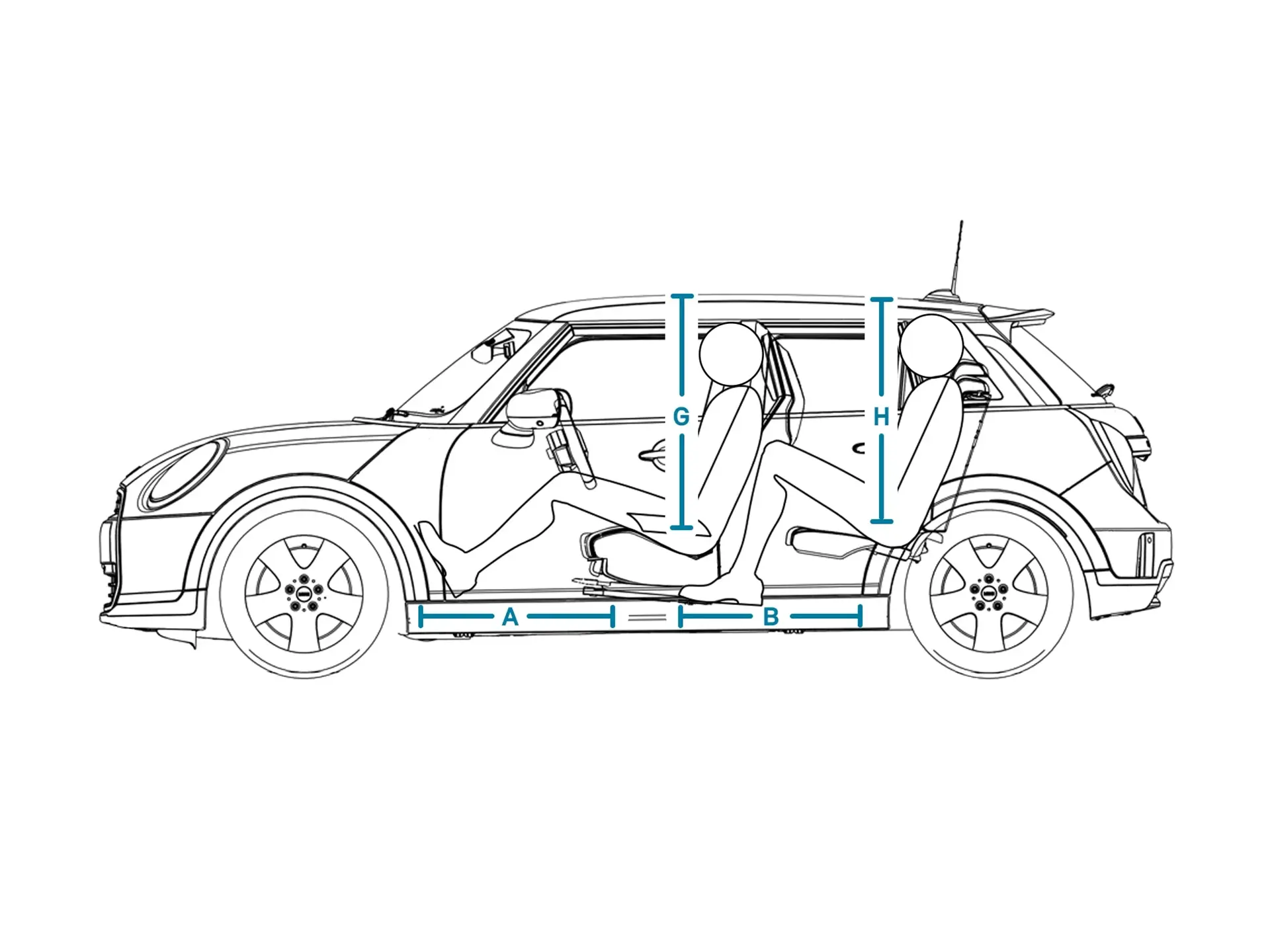

(A) Effective leg room, front	1,051 mm
(B) Effective leg room, rear	821 mm

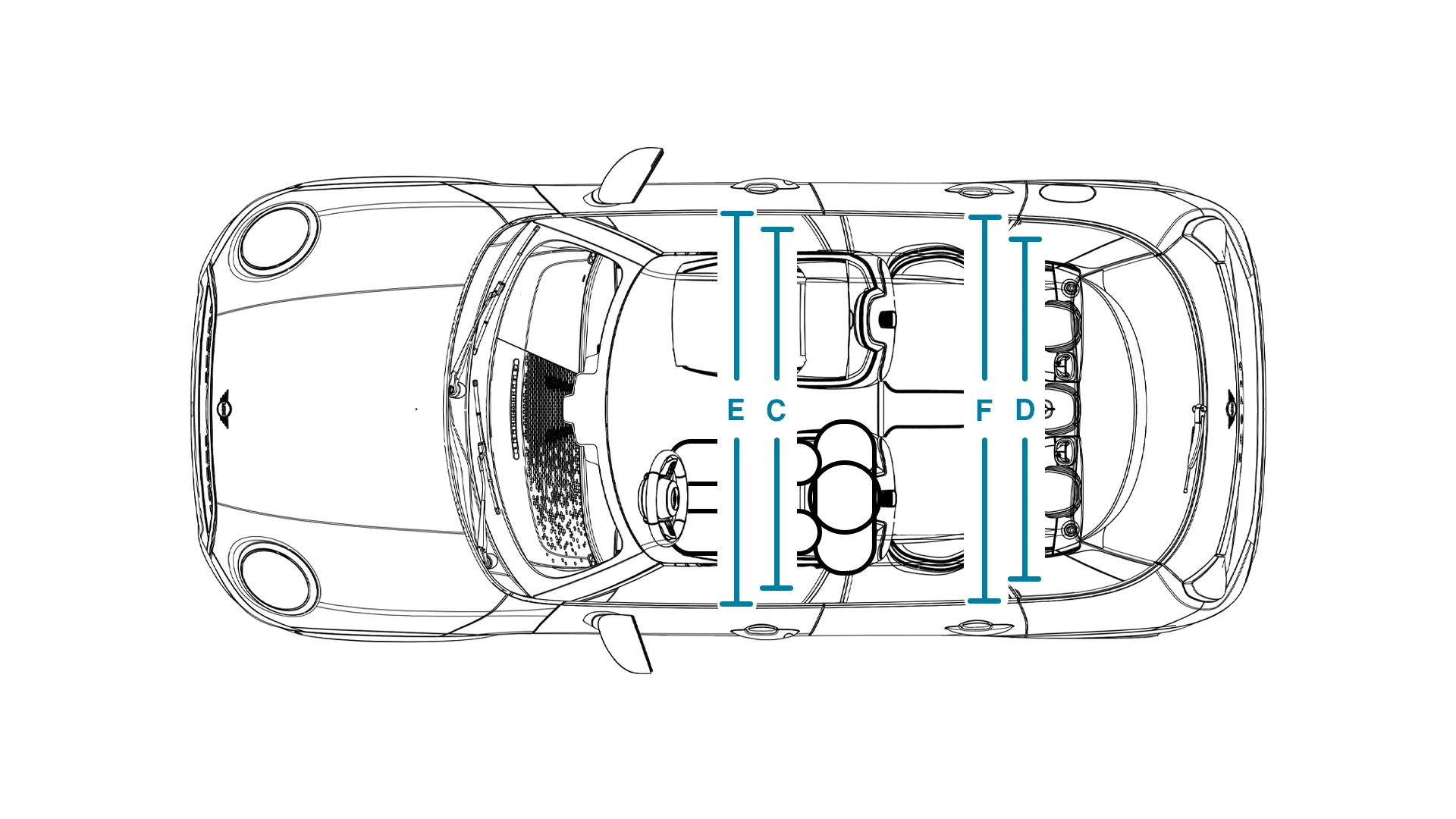

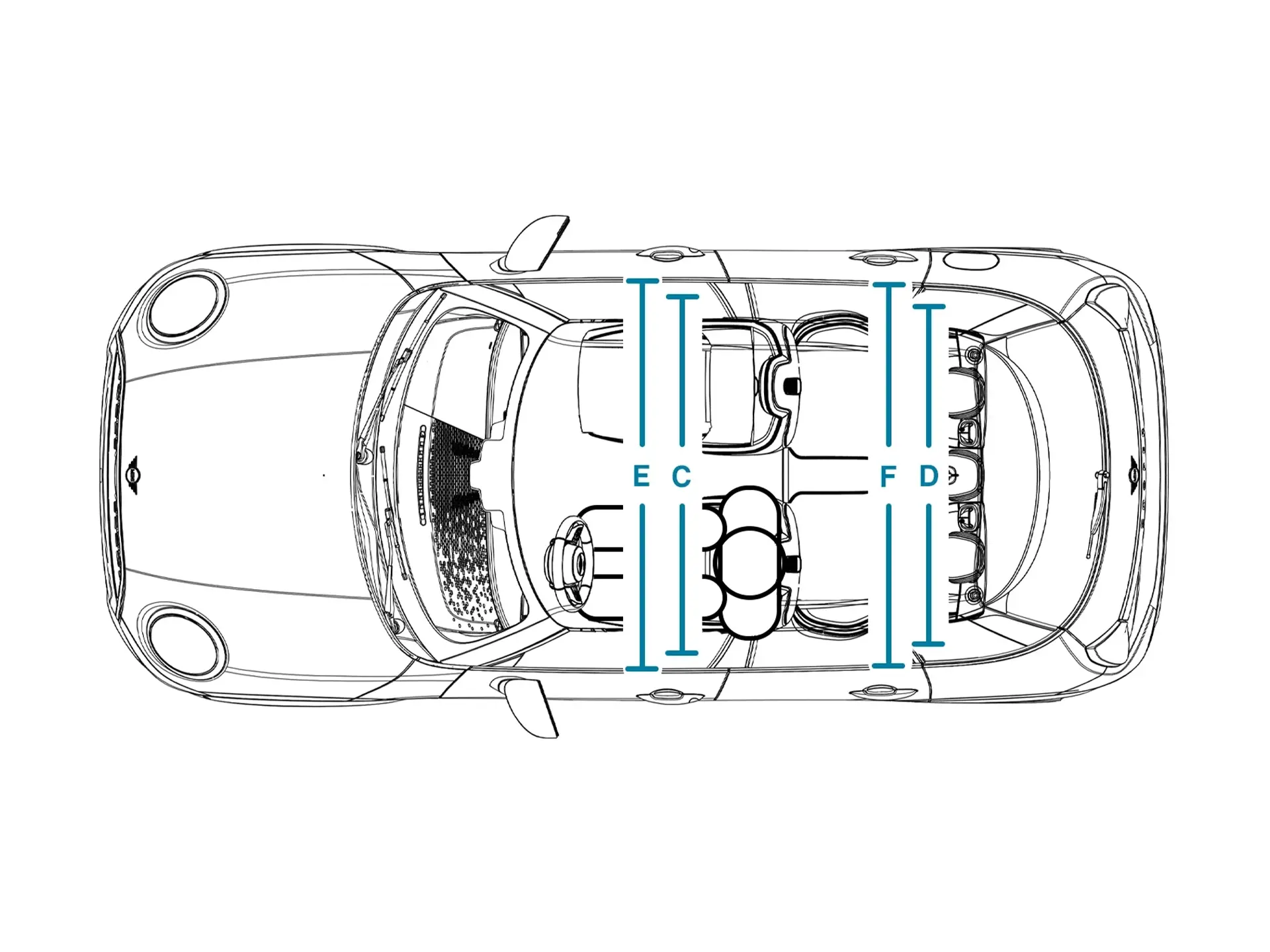

(C) Shoulder room, front	1,301 mm
(D) Shoulder room, rear	1,264 mm
(E) Elbow room, front	1,341 mm
(F) Elbow room, rear	1,328 mm
(G) Head room panoramic glass sunroof, front	981 mm
(H) Head room panoramic glass sunroof, rear	920 mm
Head room normal roof, front (com. value)	1,012 mm
Head room normal roof, rear (com. value)	953 mm

Luggage compartment floor length (2nd seat row)	588 mm
Smallest loading opening	756 mm
Largest luggage compartment width	993 mm
Smallest luggage compartment width	858 mm
Width of tailgate - top	833 mm
Width of tailgate - bottom	892 mm
Height of loading opening	633 mm
Luggage compartment height	444 mm
Loading edge height	659 mm
